01.Features of led street lamp
- The integrated all in one design, no cable,the installation is very convenient.
- Fully-digital and high-precision constant current control boasting an efficiency of up to 96%
- The Mono-crystalline solar panel,LED lights,lithium battery,intelligent controller integrated Aluminum Alloy shell.
- True constant current rather than current-limiting control ensures smooth and stable output current, effectively reducing LED light attenuation and extending LED service life.
- When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.
- It used of alloy material as the main structure,with good rust prevention,corrosion protection. A metal case and an IP66 waterproof level enable the device to operate in various kinds of tough conditions.
- The wireless remote control setting device,adjustable lighting time ,lighting power ,automatic detection of battery voltage,read light power parameters,a human body induction function,as long as people go through when full power lighting,no automatic power down alf, restore
- energy saving mode.
- Time control + light sensor control+ motion sensor control
- Motion and light sensor built in:solar street light goes on at dusk at 20% brightness(Brightness adjustable). Can go from 20% power to full brightness when motion is detected.
02 Specification of all in one solar led street light
| Par NO. Parameter | LY-ST30020PW |
| Battery | 18650 lithium battery 12V 20Ah |
| Beam angle | 150x65° |
| Pole diameter | 60mm |
| Light output | 20W |
| Luminous flux (lm) | 3200 |
| Solar panel | 25W /18V monocrystalline silicon |
| CRI | >70 |
| Chip Brand | LUXEON 5050 |
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days |
| Control Mode | MPPT Control+Motion Sensor |
| Installation height | 4~8M |
| Housing | All In One Die Casting Aluminum,Eesy to open and Installation |
| Optional | AC/DC Hybrid System |
| Certifications | CE/ROHS/IP66/IK09 |
03 Work Model of solar led street lighting
Solar panel charges in sunny daytime.Light works at night with the power stored by battery
When People leaves 8-10M away, after set times, the light will dim to set brightness
When people comes 8-10M near,the light will turn on with full brightness
04 Application of high power led street light
Suitable for the street lighting; sidewalk lighting;roadway lighting; fence lighting; pathway
lighting; campus lighting; park lighting; garden lighting;ramp lighting;boat dock lighting; remote
area lighting;farm & ranch lighting.
05 Production of led street light

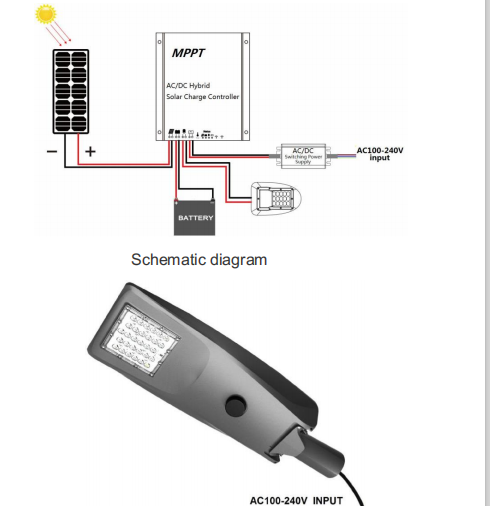

AC/DC Hybrid Solar Power System (Need for customization)
Features a DC detection function. If DC available, the system will automatically
switch to lithium battery supply when the battery voltage rise to the DC switching point;
the system will automatically switch to DC power supply when the battery voltage falls
to the DC switching point; if DC powers off, the system will shut off output when the
battery reaches the over-discharge point after continuous discharging.
