High Brightness 500W IP66 LED Flood Light Module With Meanwell Driver
Application:

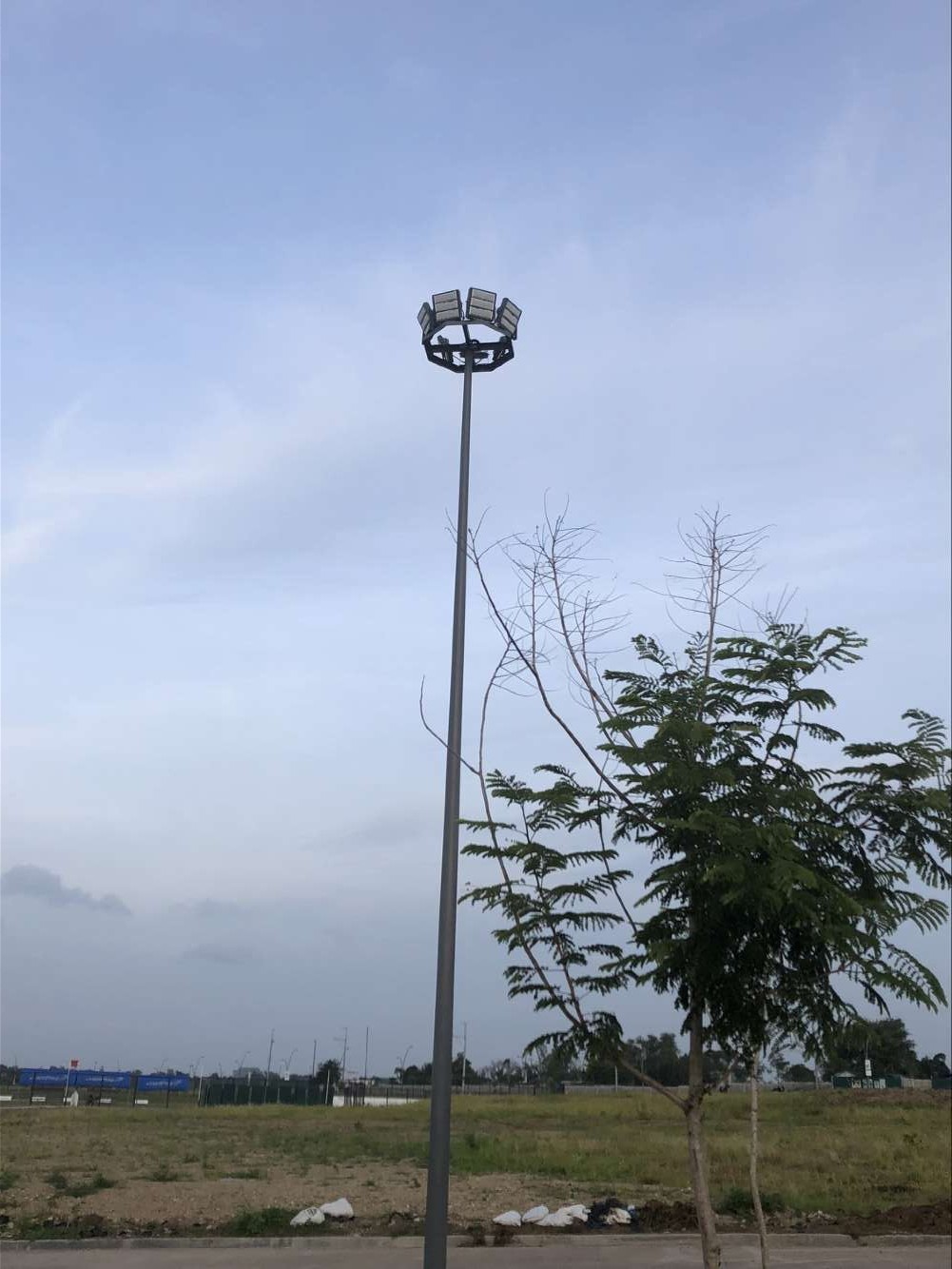

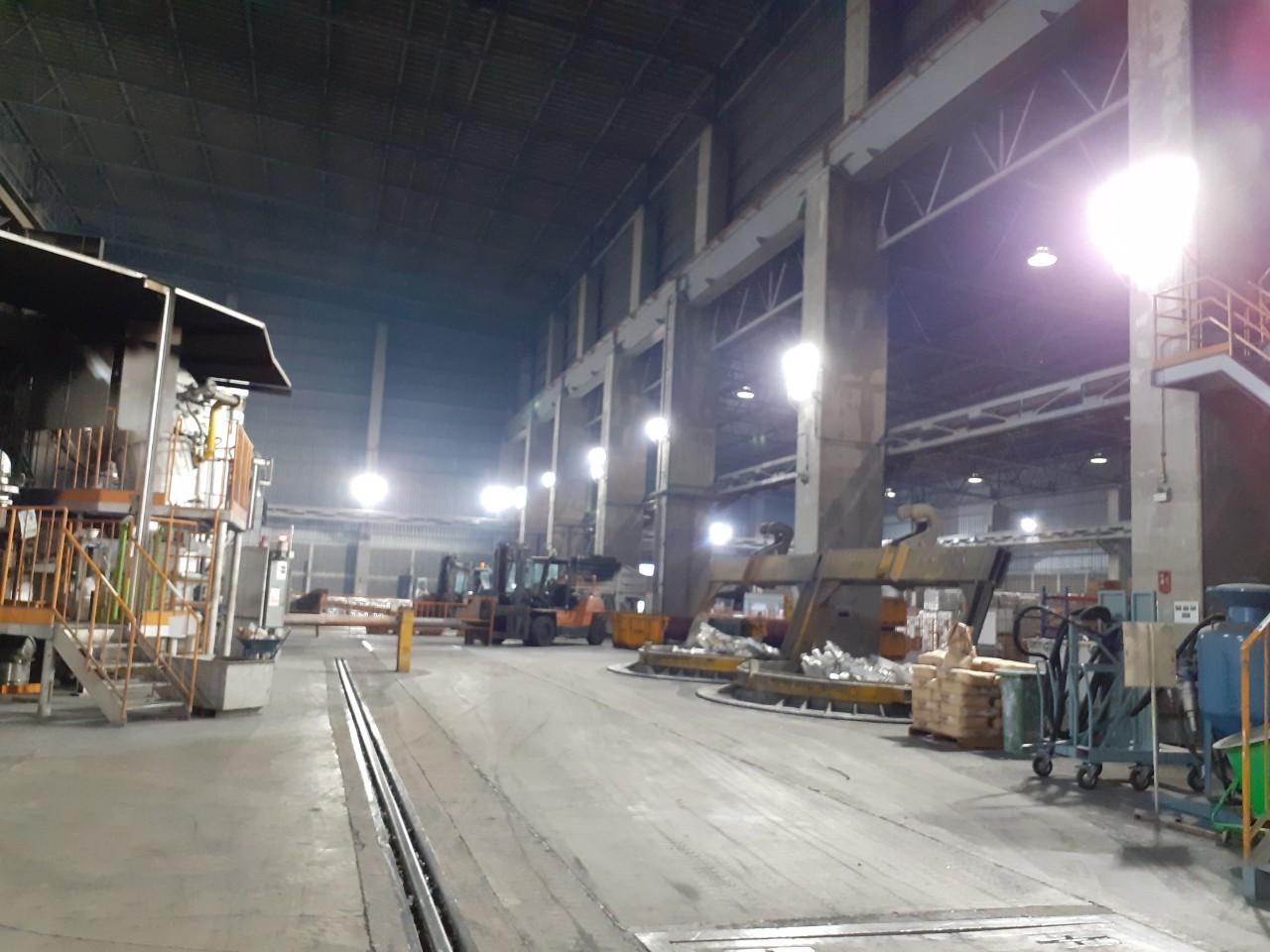

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
Features
1) Adoption Lepower exclusive ZAG Lens with light transmittance up to 98%
2) Perfect Light Distribution Solution:Adoption of integrated peanut shell optic lens, enhance the brightness and illumination uniformity.
3) High luminous efficiency, Whole lamp output light effiency >130LM/W.
4) high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
5) For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection
6) Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body;
7) The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Specification:
| Input Voltage | 100-240V AC 50/60Hz |
| Power factor | ≥0.95 |
| Power Efficiency | ≥85% |
| LED Power | 400W
500W |
| LED Luminous efficiency | ≥160lm/W |
| CRI | Ra>70 |
| Beam Angle | 25° 60º 90° 150*65° |
| Color Temperature | Warm white WW 2700-3000K
Neutral white NW 4000-5000K
Pure white PW 5000-6500K
R/G/B/Other optional |
| Operatinal condition | Temperature:-30℃~60℃
Humidity:10%-90%RH |
Distribution Curve
5. MTBF Curve
6. Operation and Storage Condition
Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
Input Voltage 100~240V AC, 50/60Hz
Storage Ambient Temperature -30 to +85°C, Relative Humidity 5~95%
Mounting Height : Suitable for 5~12m height

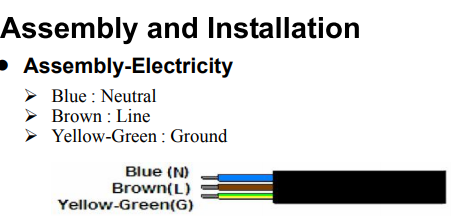

7. Assembly and Installation
Assembly-Electricity
