High power 200W multi color led flood lightwith aluminum housing and PC lense.
Lamp Drawing:
Application:
LED is cold light sources, a wide range of output color, RGB modular flood light use LED as a light source ,can be widely used in various building walls of light color decoration, and the stage, meeting rooms, display lights, ancient buildings, the Cultural Plaza and other places.
Features:
1.Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.
2.Adoption LEYOND exclusive Lens with light transmittance up to 98%.
3.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
4.There are 25°,,60°, 90° beam angle options for the Lens.
5.Master or Slave function, if set master, it can stead of the external controller.
6.Reliable constant current driver designed to ensure high-power LED lights for a stable job.
7.Superior ability to adapt to the environment, protection grade IP65, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.
8.More than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.
9.Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
Performance Parameters:
| Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency |
| LY-ST23150RGB | 5 | 200W | AC100~240V 50/60Hz | 0.95A/220VAC | >0.99/115VAC >0.95/230VAC | >90% |
| Emitting Color | λd / CCT | Typical Lumens | Forward Voltage | Forward Current |
| RED | 620-630 nm | 2200 lm | 13-17V | 2500mA(MAX) |
| GREEN | 520-530 nm | 4750 lm | 21-25V | 2500mA(MAX) |
| BLUE | 460-465 nm | 1800 lm | 21-25V | 2500mA(MAX) |
| WHITE | R+G+B | 8000lm | 13-25V | 7500mA(MAX) |

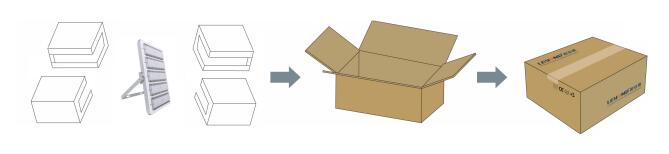

Package:
Inner box Size: 608mm×390mm×135mm
Outer box Size: 623mm×405mm×305mm (2 PCS LED Flood Light)

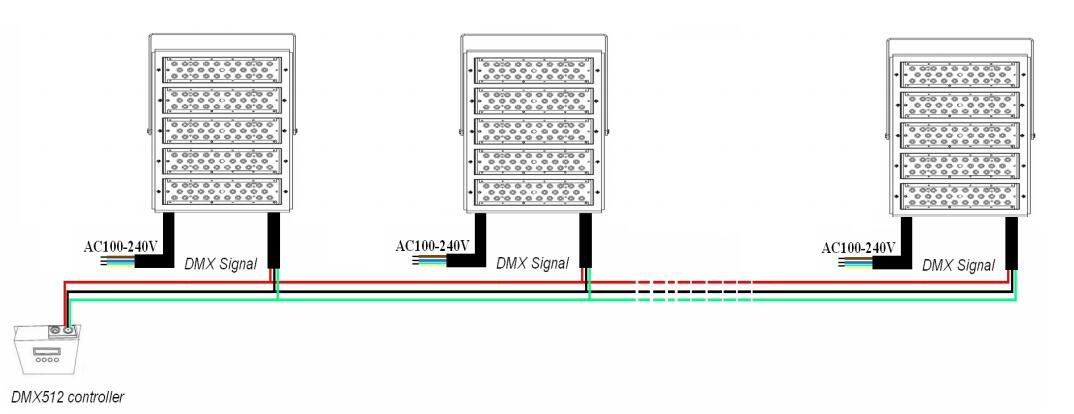

DMX CONTROL:

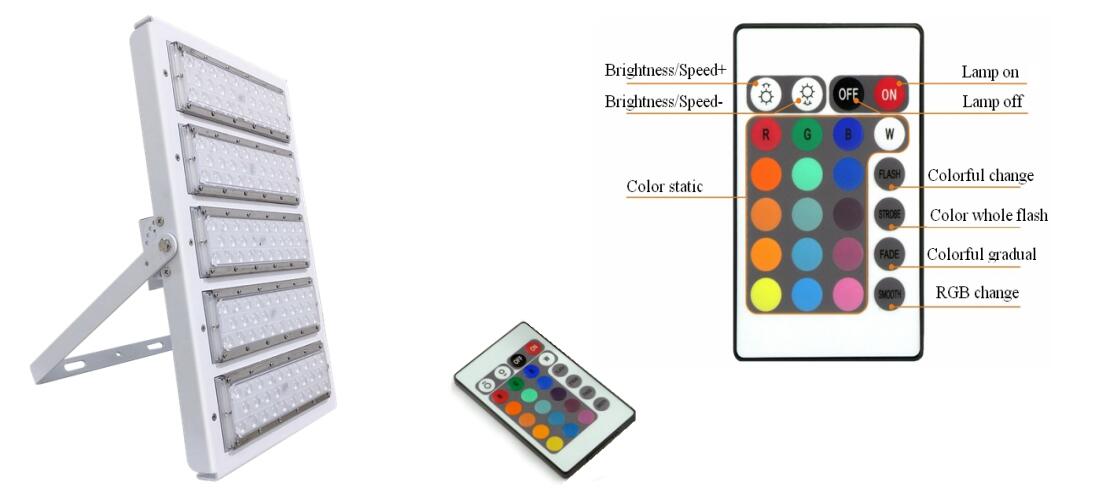

RF CONTROL:
About Us:
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005. who is a leading provider of outdoor lighting fixtures with high technology and quality. We are carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.
Leyond is the Top 3 LED street light exporter from China,Our major products include Led Street Lights, Led Flood Light,LED Stadium Light,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.
