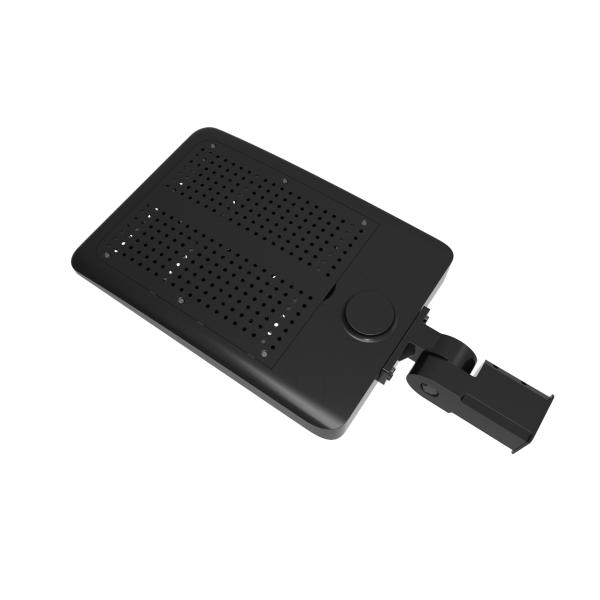

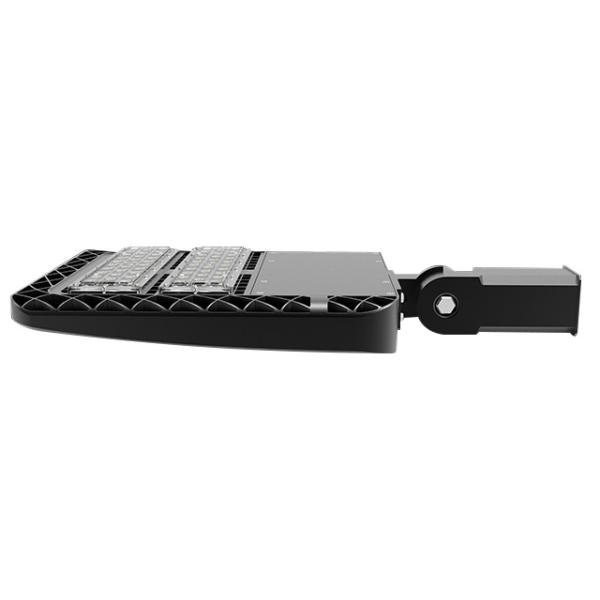

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

Name: Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050
Brand: Leyond
Price: 1 USD

China Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 wholesale

Brand Name : Leyond

Model Number : LY-ST40100-XX

Certification : ENEC CB CE ROHS

Place of Origin : China

MOQ : 2

Price : Negociatable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000-10000/month

Delivery Time : Sample:3-5 days;Maa production:10-12 working days

Packaging Details : H*W*L

Product Nanme : LED Street Light

Lamp Power : 80W,100W

LED Chips : c

LED Driver : Meanwell

Lamp body material : Die custing Aluminum

Waterproof Rating : IP66

Whole Lamp Efficiency : 160

Warranty : 5 years

Contact Now

Leyond Spiderman IP66 100w LED Street Light Lumileds Luxeon 5050

Leyond IP66 Spiderman LED Street light 100W for LED Road lighting.

Features

Absolutely unique mold,make your lighting special and fantastic.
Anti-glare and uniform light level to avoid any visual discomfort.
high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98.
Adopting Lumileds Luxeon 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 98%.
Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
Nice appearance and non-fouling properties, Protection class IP66.

Specification

Par NO Parameter	LY-ST40100PW	LY-ST40100WW	LY-ST40100NW
Input voltage	AC90V～305V 50/60HZ
System consumption(W)	100	100	100
Luminous flux(lm)	16500	15500	16100
Chip Brand	Luxeon50500/Leyond 5050	Luxeon5050/Leyond 5050	Luxeon5050/Leyond 5050
Beam Angle	150*65 DEG	150*65 DEG	150*65 DEG
CRI	＞70
Color Temperature	Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
LED Driver	MEAN WELL ELG-100H / XLG-100
Luminous efficiency(lm/w)	＞160
Lifespan(hrs)	＞50000
IP Rating	IP66
Dimmable	YES＆NO	YES＆NO	YES＆NO
Size(mm)	720x340x69	720x340x69	720x340x69
Net Weigh(kg)	7.3	7.3	7.3
Package Size(mm)	740368110	740368110	740368110
Package Quantity(Pcs)	1	1	1
Gross Weigh(kg)	8.4	8.4	8.4

Detailed Product Pictures

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

04. Package

Inner box Size: 670mm×370mm×100mm

Outer box Size: 690mm×385mm×240mm (2 PCS LED Street Light)

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

05. Production

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

06. Testing Machine

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

07. Exhibition

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

08. Installation Type

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

09. Project Case:
